Screen sharing

使用 LiveKit 發佈您的螢幕。

Overview

LiveKit 原生支援所有平台的螢幕分享。您的螢幕將作為視訊軌道發布,就像您的相機一樣。一些平台也支援本地音訊共享。

每個平台的步驟略有不同:

// The browser will prompt the user for access and offer a choice of screen, window, or tab
await room.localParticipant.setScreenShareEnabled(true);

在 iOS 上,LiveKit 透過兩種模式與 ReplayKit 整合:

  1. In-app capture (default): 用於在您的應用程式內分享內容
  2. Broadcast capture: 即使用戶切換到其他應用程式時也能分享螢幕內容

In-app capture

預設的應用程式內捕獲模式不需要額外的配置,但僅共用目前應用程式。

localParticipant.setScreenShare(enabled: true)

Broadcast capture

要在您的應用程式在背景運行時共享全屏,您需要設定廣播擴展。這將允許用戶 Start Broadcast。您可以從您的應用程式中提示這一點,或者使用者可以從控制中心啟動它。

完整步驟已在我們的 iOS 畫面分享指南 中描述,摘要如下:

  1. Add a new "Broadcast Upload Extension" target with the bundle identifier <your-app-bundle-identifier>.broadcast.
  2. Replace the default SampleHandler.swift with the following:
import LiveKit

#if os(iOS)
@available(macCatalyst 13.1, *)
class SampleHandler: LKSampleHandler {
    override var enableLogging: Bool { true }
}
#endif
  1. Add both your main app and broadcast extension to a common App Group, named group.<your-app-bundle-identifier>.
  2. Present the broadcast dialog from your app:
localParticipant.setScreenShare(enabled: true)

在 Android 上,螢幕擷取是使用 MediaProjectionManager 執行的:

// Create an intent launcher for screen capture
// This *must* be registered prior to onCreate(), ideally as an instance val
val screenCaptureIntentLauncher = registerForActivityResult(
    ActivityResultContracts.StartActivityForResult()
) { result ->
    val resultCode = result.resultCode
    val data = result.data
    if (resultCode != Activity.RESULT_OK || data == null) {
        return@registerForActivityResult
    }
    lifecycleScope.launch {
        room.localParticipant.setScreenShareEnabled(true, data)
    }
}

// When it's time to enable the screen share, perform the following
val mediaProjectionManager =
    getSystemService(MEDIA_PROJECTION_SERVICE) as MediaProjectionManager
screenCaptureIntentLauncher.launch(mediaProjectionManager.createScreenCaptureIntent())
room.localParticipant.setScreenShareEnabled(true);

在 Android 上,您必須在 AndroidManifest.xml 中定義前台服務:

<manifest xmlns:android="http://schemas.android.com/apk/res/android">
<application>
    ...
    <service
        android:name="de.julianassmann.flutter_background.IsolateHolderService"
        android:enabled="true"
        android:exported="false"
        android:foregroundServiceType="mediaProjection" />
</application>
</manifest>

在 iOS 上,依照本指南設定廣播擴充。

yield return currentRoom.LocalParticipant.SetScreenShareEnabled(true);

Sharing browser audio

Info

僅在某些瀏覽器中可以共享音訊。請在 MDN 相容性表 檢查瀏覽器支援情況。

若要從瀏覽器標籤共用音頻,您可以使用啟用音訊選項的 createScreenTracks 方法:

const tracks = await localParticipant.createScreenTracks({
  audio: true,
});

tracks.forEach((track) => {
  localParticipant.publishTrack(track);
});

Testing audio sharing

Publisher

共享音頻時,請確保選擇 Browser Tab(而不是視窗)和 ☑️ 共享選項卡音頻,否則在調用 createScreenTracks 時不會產生音軌:

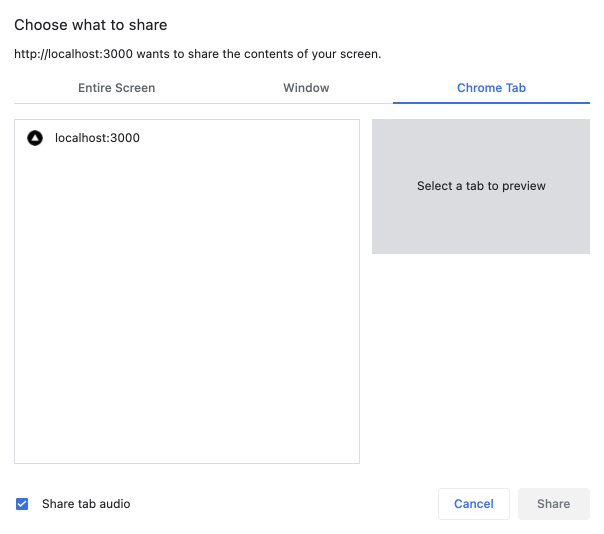

Popup window for choosing to share entire screen, a specific window, or a Chrome tab, with options to share audio and action buttons.

Subscriber

在接收端,您可以使用 RoomAudioRenderer 自動播放房間的所有音軌,或使用AudioTrack 或您自己的自訂 <audio> 標籤將音軌新增至頁面。如果您聽不到任何聲音,請檢查您是否從伺服器接收了曲目:

room.getParticipantByIdentity('<participant_id>').getTrackPublication('screen_share_audio');
